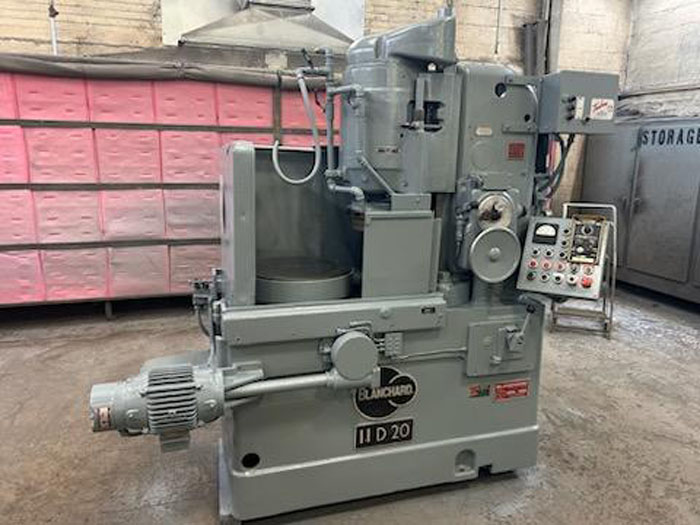

RECONDITIONEDSTOCK NO. 6606
NOW RECONDITIONED AND READY TO GO!
FOR A VIDEO OF THIS MACHINE:
CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK:
20"
GRINDING WHEEL DIAMETER: 11"
MAXIMUM DISTANCE UNDER NEW WHEEL: 12"
TABLE SPEEDS: (4) 15 - 64 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.003 - .070 IPM
APPROX. OVERALL WEIGHT: 6500 LBS.
APPROX. OVERALL DIMENSIONS: 84" x 48" x 80" HIGH
EQUIPPED WITH:
CYLINDRICAL STYLE WHEEL ADAPTER
NEUTROFIER VARIABLE MAGNETIC CHUCK CONTROL
MOTOR DRIVEN TRAVERSE FOR IN-OUT SADDLE TRAVEL
WHEEL DRESSER
TRABON LUBRICATION SYSTEM
BIJUR LUBRICATION SYSTEM FOR SADDLE TRAVERSE WITH NEW LUBE LINES
GRIND TABLE FLAT
MACHINE PAINTED
COOLANT PUMP
