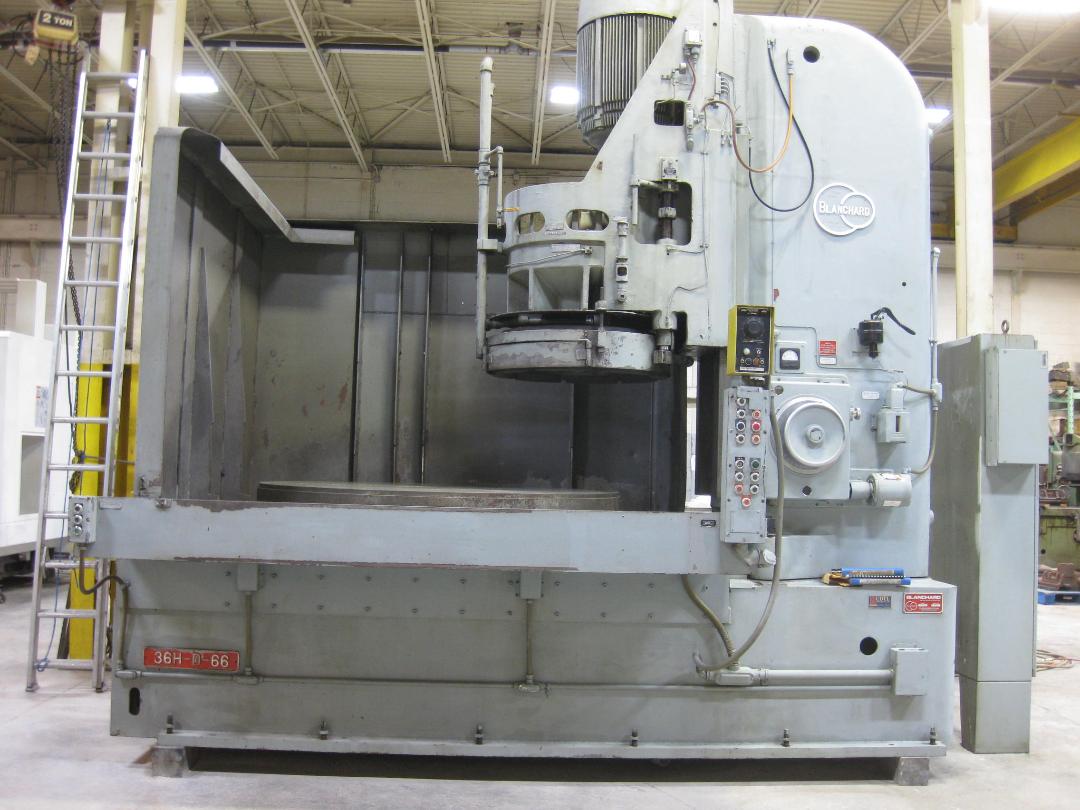

BUILT 1980STOCK NO. N6597
ORIGINAL PAINT!
FOR A VIDEO OF THIS MACHINE:
CATALOG SPECIFICATIONS:

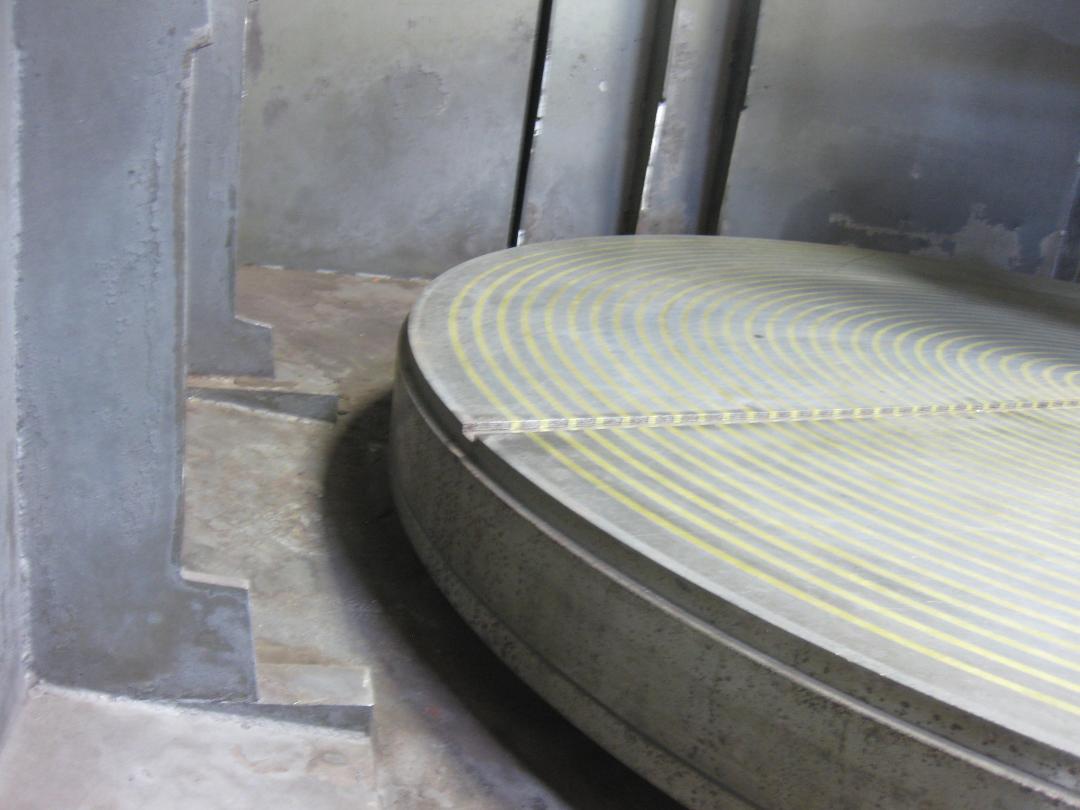

DIAMETER OF MAGNETIC CHUCK:
66"
SWING INSIDE WATER GUARDS: 84"
GRINDING WHEEL DIAMETER: 36"
MAXIMUM DISTANCE UNDER NEW WHEEL: 48"
TABLE SPEEDS: (4) 5.6 - 20.7 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.004 - .080 IPM
APPROX. OVERALL WEIGHT: 45,000 LBS.
FLOOR SPACE: 195" x 97" WITHOUT ELECTRICAL CABINET AND COOLANT TANK
EQUIPPED WITH:
GEAR HEAD DESIGN WITH 150 HP SPINDLE
CORTLAND STYLE SEGMENTED WHEEL ADAPTER
SOLID STATE VARIABLE HOLDING POWER MAGNETIC CHUCK CONTROL
NEARLY NEW CHUCK LIFE
WHEEL DRESSER
HARDENED AND GROUND REPLACEABLE STEEL BASE WAYS
TRABON AUTOMATIC LUBRICATION SYSTEM
EXTERNAL COOLANT TANK, PUMPS AND BARNES MAGNETIC DRUM SEPARATOR
MISC. SPLASH GUARDING
