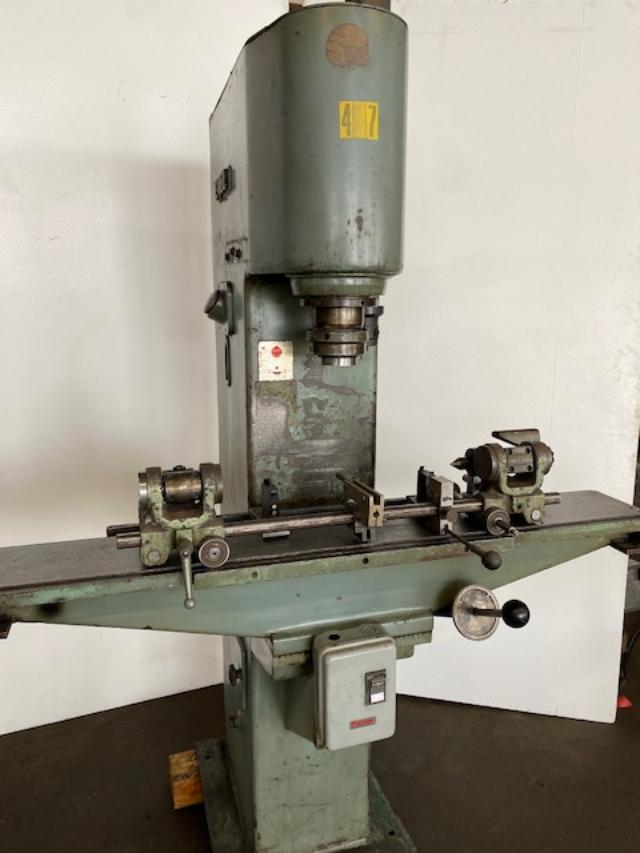

EITEL MODEL RP-16 HYDRAULIC STRAIGHTENING PRESS

SERIAL NO. 25040BUILT 1975STOCK NO. 6596

FOR A VIDEO OF THIS MACHINE: https://youtu.be/s9qynX27GAg?si=w7lE_uQO9M2qmbJX

CATALOG SPECIFICATIONS:
CAPACITY: 16 TONS
STROKE: 6"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8"
DAYLIGHT: 20"
DEPTH OF THROAT: 6-3/8"
RAM SPEED, DOWNWARDS: 80 IPM
RAM SPEED, UPWARDS: 135 IPM

EQUIPPED WITH:

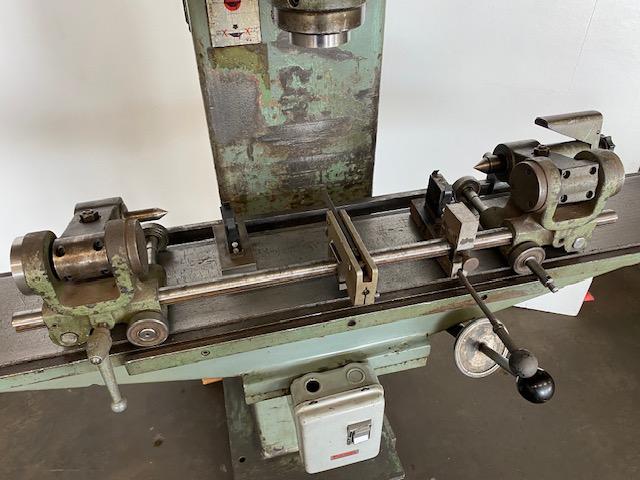

WR-1 ROLLING FIXTURE
ONE PAIR OF CENTER TOPS
ONE PAIR OF ROLLER TOPS
8" X 51" MAIN TABLE
(1) 39" TABLE EXTENSION
(2) TABLE MOUNTED ANVILS
(1) MEASURING BRACKET
3 HP HYDRAULIC MOTOR

MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINE MAY BE INSPECTED UNDER POWER
