FOR A VIDEO OF THIS MACHINE: https://youtu.be/o8wVF9dYFUc
CATALOG SPECIFICATIONS:
MAXIMUM TURNING DIAMETER: 13.98"
MAXIMUM TURNING LENGTH: 17.32"
X-AXIS TRAVEL: 8.66"
Z-AXIS TRAVEL: 17.32"
BAR CAPACITY: 3.25"
RAPID TRAVERSE (X & Z): 118 FPM
SPINDLE TORQUE: 211.38 LB-FT.
SPINDLE SPEEDS-INFINITE: 30 - 4000 RPM
MACHINE DIMENSIONS: 100" x 68" x 64" HIGH
MACHINE WEIGHT: 8000 LBS. APPROX.
EQUIPPED WITH:

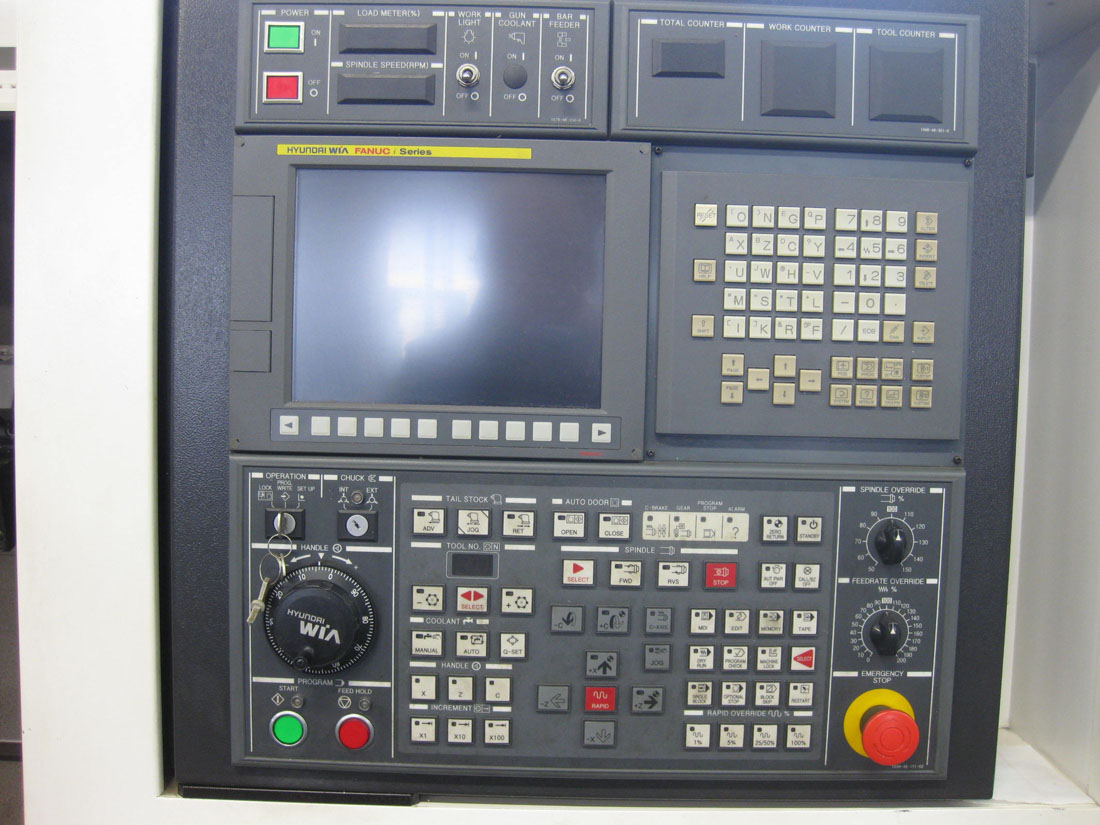

FANUC i-SERIES CONTROL
IEMCA SERVO BARFEED
TOOL EYE
PARTS CATCHER
CHIP CONVEYOR
COOLANT TANK AND PUMP
PROGRAMMABLE TAILSTOCK
20 HP SPINDLE MOTOR
